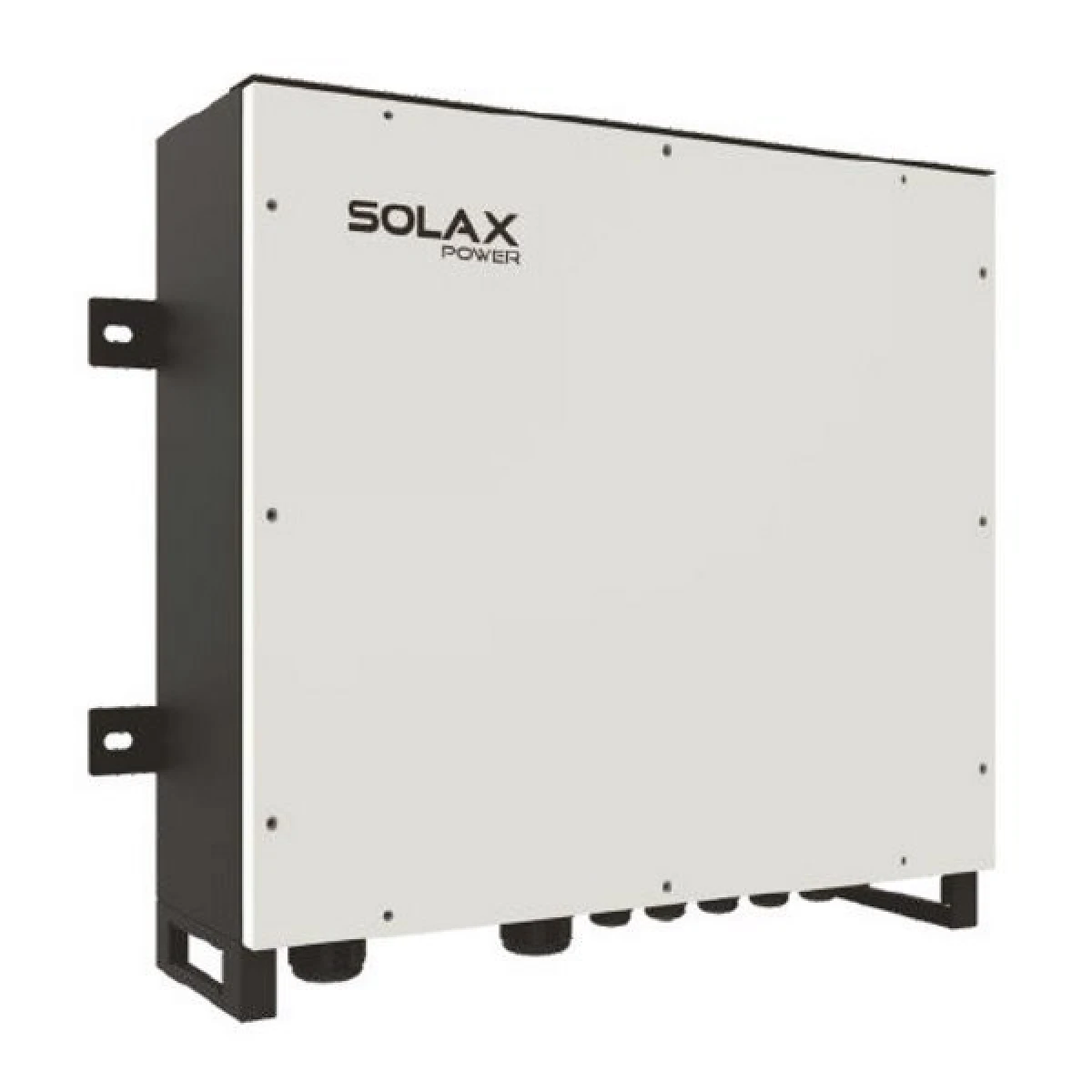

SolaX X3-EPS Parallel Box G2 150kW

Prijava Za dodajanje izdelkov v košarico se morate prijaviti!

X3-PBOX-150kW-G2 Datasheet

X3-EPS Parallel Box G2.pdf

Prenos

GRID (INVERTER)
Grid connection	Three Phase
Rated voltage	220/380V,230/400V,240/415V
AC frequency	50/60Hz
AC output voltage range	(198~253)/(342~440)V
Maximum grid input current	217A
EPS (INVERTER)
Rated voltage	230/400VA
EPS frequency	50/60Hz
Compatible inverter	5~10
Maximum EPS input current per channel	21.7A
Maximum EPS input current	217A
LOAD (BACKUP)
Load connection	Single Phase/Three Phase
Rated voltage	220/380V,230/400V,240/415V
AC frequency	50/60Hz
Maximum apparent power	150kVA
Maximum output current	217A
Switchover time	<10s
GENERAL SPECIFICATION
Operating temperature range	-25°C to +40°C (-13°F to +104°F)
Relative humidity range	0~100 (condensing)
Dimensions (W × H × D)	776 x 740 x 234 mm (30.6 x 29.1 x 9.2 inch)
Weight	41kg
Degree of protection	IP65
