Deye GE-F256 – 257 kWh HV C&I Energy Storage Cabinet

Deye GE-F256 – 257 kWh HV C&I Energy Storage Cabinet

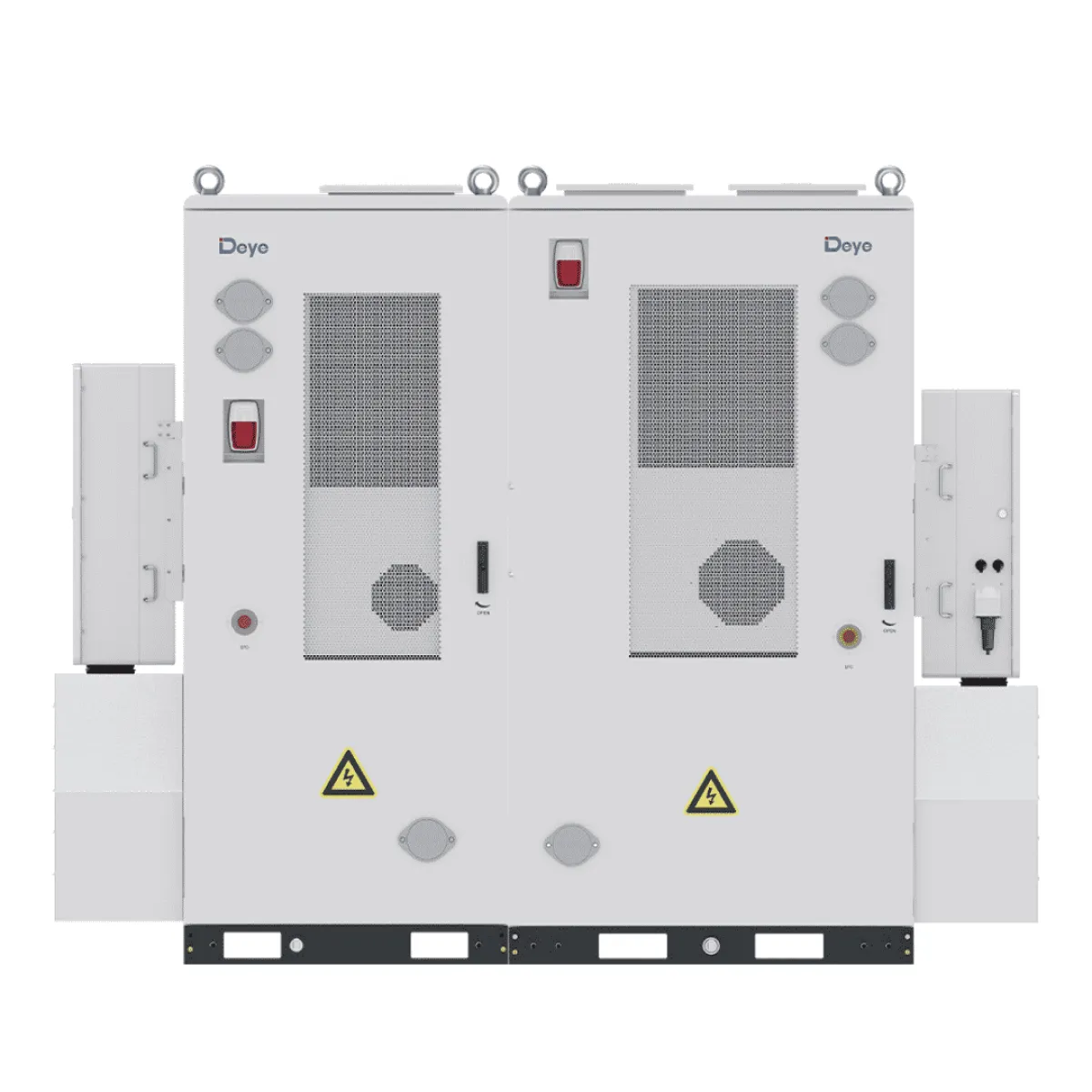

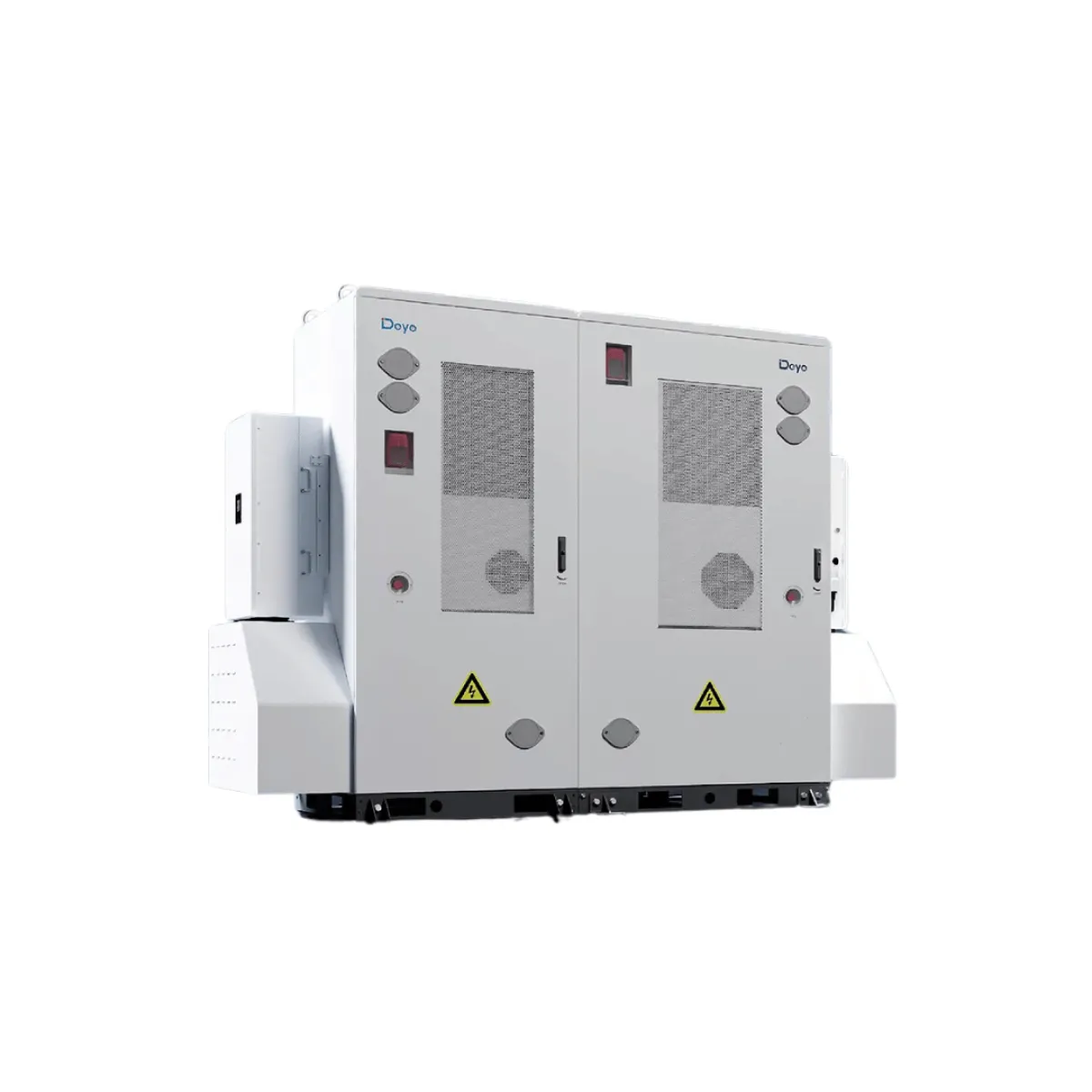

The GE-F256 is an outdoor, high-voltage (HV) battery energy storage cabinet that serves as the DC-side storage unit of the Deye HESS (hybrid energy storage) system. Important: This is not an inverter, but the battery pack itself—featuring LiFePO4 cells, a built-in BMS, and a fire protection system. One cabinet provides a net usable capacity of approximately 257 kWh and 128 kW of DC power. This solution is positioned for the C&I (commercial and industrial) segment and always operates in conjunction with a compatible Deye hybrid inverter or PCS module.

What is it used for?

Typical applications include commercial and industrial (C&I) sites: manufacturing plants, logistics centers, office buildings, or large agricultural consumers. The most common applications include peak shaving, load shifting, storing self-generated PV power, and taking advantage of dynamic pricing (discharging during peak hours and charging during off-peak hours). In the event of a power outage, it can also serve as a backup power source if you configure the inverter for off-grid operation. A single cabinet’s 257 kWh capacity provides a significant buffer on its own, but multiple units can be operated in parallel in microgrids and larger projects.

How does it work?

The GE-F256 is the storage component of the system: the LiFePO4 modules, connected in 16 series, store energy at a nominal voltage of approximately 819 V using a high-voltage (HV) architecture. The cabinet itself does not handle the AC/DC conversion or the grid and PV connections—this requires a hybrid inverter (e.g., SUN-125K) or a PCS+MPPT+STS module, which controls charging and discharging. The built-in BMS maintains cell balance through rack-, pack-, and cell-level balancing, ensuring that capacity remains stable throughout the service life. Cooling is provided by an intelligent air-cooling system, which maintains performance without derating up to 45 °C and keeps the temperature difference between cells at ≤6 °C.

Technical and System-Level Benefits

The rated and usable energy are identical (100% DOD), meaning the 257 kWh is actually usable, not just on paper. The LiFePO4 cells are rated for ≥8,000 cycles (EOL 70%) and come with a 10-year warranty—this provides a predictable return on investment at the C&I level. The HV (~819 V) architecture is compatible with GM10 inverters and the PCS module, and operates more efficiently at higher power output with lower current values. Designed for outdoor installation: IP55, C4-M corrosion protection, –30…+55 °C operating range, six-point fire protection (aerosol and water suppression, CO detection, active ventilation, explosion pressure relief). It is also scalable: up to 10 cabinets can be connected in parallel on the DC side (up to ~2.57 MWh), and up to 10 inverters on the AC side, for both on-grid and off-grid operation; monitoring is handled via the Deye Cloud platform.

Differences

The GE-F256 is the highest-capacity, single-cabinet model in the series (~257 kWh). The GE-F240 series ranges from 177 to 241 kWh, while the smaller GE-F128 series delivers 112–128 kWh in a smaller (998 mm wide) enclosure. The architecture and protection logic are identical across all three models—the choice depends on the desired energy storage capacity and the available space. If you want to maximize capacity from a single cabinet, the F256 is the logical choice.

Important to know

This is a battery cabinet, not a complete system: it cannot be connected to the grid on its own; it must always be paired with a compatible Deye hybrid inverter or PCS module. Due to its HV design, pair it with an HV-capable unit (GM10 / PCS). It is a floor-mounted unit weighing ~2765 kg, so proper foundation and a load-bearing surface are required. It is oversized for smaller residential applications—in such cases, low-voltage, smaller storage units are more suitable.

SOLARKIT Reviews

If you’re considering a C&I project and want high storage capacity from a single cabinet with full (100%) utilization, the GE-F256 is a good choice. Thanks to its 8,000+ cycles and 10-year warranty, it pays off primarily in applications where the storage system is cycled on a daily basis—such as for peak shaving, load shifting, or dynamic pricing. Before installation, verify the inverter (or PCS) compatibility and grid connection approval, as these factors determine the actual performance and operating mode. If your needs grow, its parallel-connectivity allows you to confidently plan for systems in the MWh range.
