Dyness SBDU100 BMS and base for STACK100

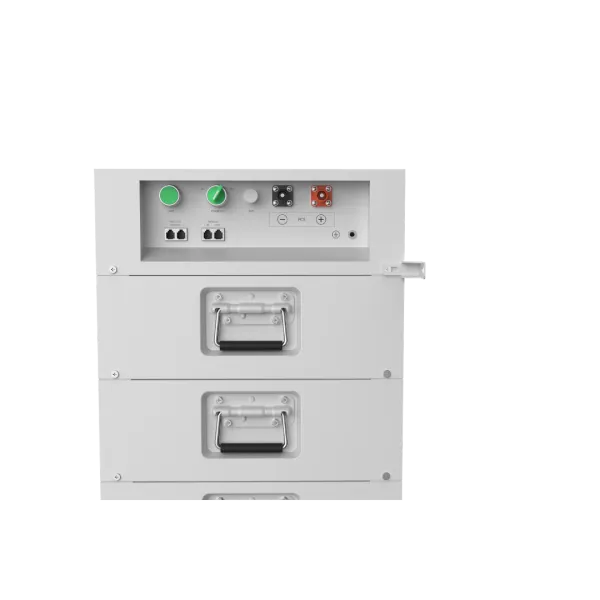

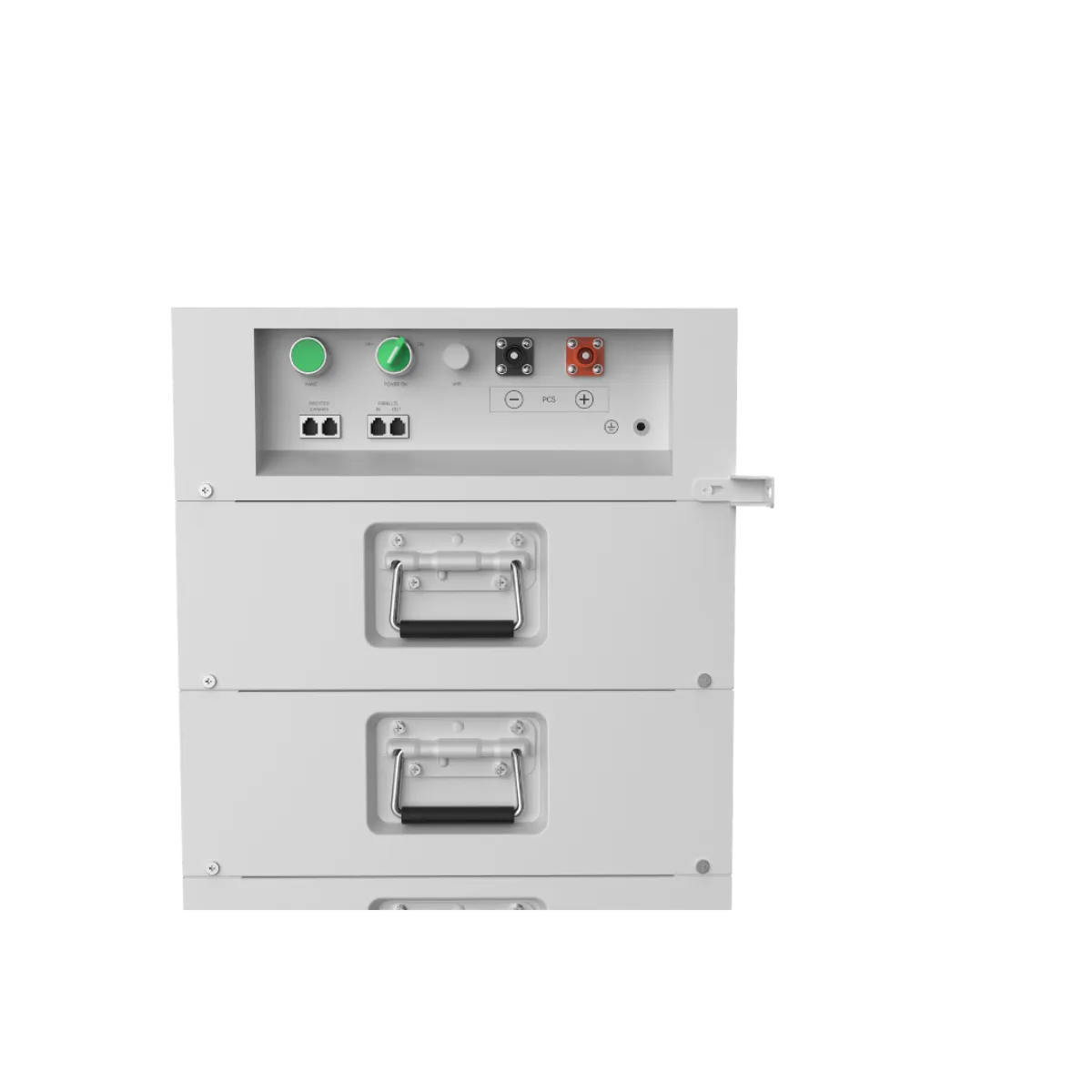

Dyness SBDU100 BMS and Base Module – for the STACK100 Energy Storage System

The Dyness SBDU100 is a control and base module that serves as the central component of the Dyness STACK100 energy storagesystem. The module includes the BMS control and the base unit of the battery system, ensuring the stable operation, communication, and secure integration of the battery modules within the entire energy storage system.

Dyness SBDU100 BMS and Base Module – for the STACK100 Energy Storage System

The Dyness SBDU100 is a control and base module that serves as the central component of the Dyness STACK100 energy storagesystem. The module includes the BMS control and the base unit of the battery system, ensuring the stable operation, communication, and secure integration of the battery modules within the entire energy storage system.

BMS Control for the STACK100 Energy Storage System

The SBDU100 module is the intelligent control unit of the STACK100 battery system, which continuously monitors the operation of the battery modules. The BMS system monitors voltage, current, and temperature, ensuring optimal charging and discharging processes.

Built-in protection prevents over-discharge, overcharging, overcurrent, or overheating, which significantly increases the safety and lifespan of the energy storage system.

The STACK100 system’s base module

The SBDU100 not only functions as a BMS controller but also serves as the physical base unit of the STACK100 energy storage system. The module ensures the mechanical stability of the battery stack and provides the electrical connection points for the entire system.

The STACK100 battery modules are built onto the base module, forming a stable and modularly expandable energy storage system.

Modular Energy Storage Architecture

The Dyness STACK100 system has a modular design, allowing multiple battery modules to be stacked on top of each other. The SBDU100 module manages communication between the modules and the operation of the entire system.

This design allows for flexible system expansion tailored to the project’s energy needs, while ensuring balanced operation of the batteries.

Communication and System Integration

The SBDU100 connects to the inverter and the energy management system via communication interfaces. This enables the integration of the entire energy storage system with solar systems and smart energy management solutions.

The system also supports monitoring and remote management functions, which facilitate operation and maintenance.

SOLARKIT Reviews

The Dyness SBDU100 BMS and Base module are key components of the STACK100 energy storage system. The combination of BMS control and the stable base module ensures reliable system operation and a modular energy storage architecture.

It is the ideal choice for those building a Dyness STACK100 energy storage system and seeking a stable, intelligently controlled energy storage solution.
